| 設備特點： | Equipment Features: |
|
長壽命的管式膜 可連續去除水中懸浮物 與沉淀物緊湊 滑架式的安裝 完整的設計 包含內部清洗系統 自動清洗（隨洗） 背脈沖裝置可使系統達到最大通量 自動，無故障操作 提供隨選與輔助工藝模塊 PLC自動控制 |
Long-life tubular membrane Suspended solids removal in the water High solid handing capacity Rack slide installation Complete design Inner cleaning system Self-cleaning(on demand) High flux Automatic, trouble-free operation Provide optional and assistant technics modules Automatic PLC control |
| 優勢： | Advantages: |
| 可以完全去除顆粒物質 | Can remove particulate matter |
| 對膜的運行有嚴格的保證與承諾 | Strict commitment for membrane's operation |
|
膜處理后的水，水質良好，完全不需要投 加聚合物 |
Membrane treated water, goodquality, no need to increase polymer |
| 完整的設計 | Complete design |
| 較傳統的工藝產出的污泥量少 | Less sludge produced than the traditional process |
| 該設備可與用戶原有的設備良好的結合使用 |
The device can be combined with original equipment customers |
| 設備模塊可以按照用戶的需要添加拓展 |
Equipment modules can be added according to user's needs |
| 典型應用: | Typical Applications: |
| 金屬表面處理液中去除重金屬 | Heavy metal removal in metal finishing fluids |
| RO預處理降SDI | Pretreatment for reverse osmosis for SDI reduction |
| 結合石灰軟化降低硬度 | Reduction of hardness with lime softening |
| 含氟（F）廢水除氟 | Fluorde removal |
| RO 濃水回收 | Reclaim of RO reject |
| 電鍍槽液中高濃度固體物質的去除 | High solids removal in electroplating solution baths |
| 食品飲料處理 | High solids removal from completion fluids |
| 切削液中高濃度固體物質的去除 | Food and beverage processing |
| 硅晶體研磨切片工藝切削液回用 | Cutting fluids recycling in silica grinding and slicing |
| 從焚燒爐洗滌去除水中重金屬 | Heavy metal removal from incinerator scrubber water |
| 吹式和側流式冷卻塔的過濾回收 |
Cooling tower blow-down recycling and/or side stream filtration |
| 水處理系統中的鹽水再利用 | Brine recycling in water treatment systems |
| 化學、微電子、造紙工業廢水處理 |
Wastewater processing from the chemical, |
|
材料規格 |
|
| 支撐管 | PVDF，HDPE |
| 膜 | PVDF |
| 膜的名義孔徑（μm） | 0.05，0.1，0.5 |
| 支撐管的名義孔徑（μm） | 20，100 |
| 最大跨膜壓差（PSI） | 60（1英寸管），120（1/2英寸管） |
| 外殼材質 | PVC，CPVC |

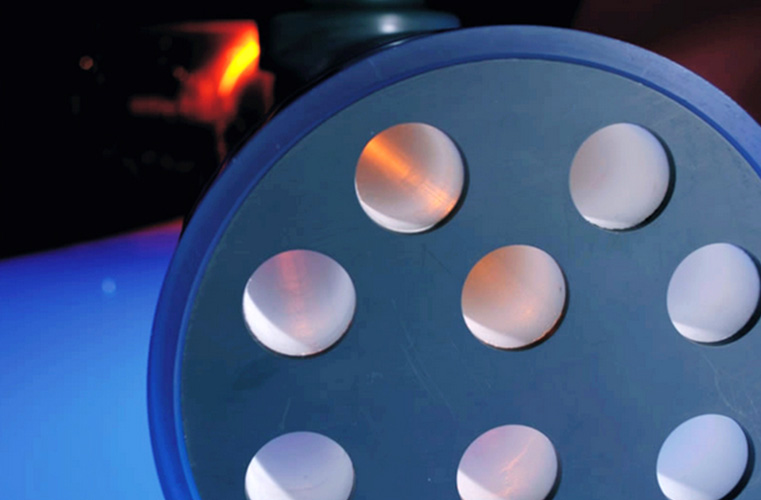

| 組件規格（含42根1/2英寸膜管） |
組件長度——72英寸 組件直徑——8英寸 兩端連接——8英寸外U型凹槽 透過水接口——3英寸外牙槽（用于管連接） 取樣口——1/4英寸NPT堵頭 |
|
組件規格（含10或13根1英寸膜管） 組件規格（含37根1/2英寸膜管） |
組件長度——72英寸 組件直徑——6英寸 兩端連接——6英寸外U型凹槽 透過水接口——3英寸外牙槽（用于管連接） 取樣口——1/4英寸NPT堵頭 |
| 組件規格（含4或5根1英寸膜管） |
組件長度——72英寸 組件直徑——4英寸 兩端連接——4英寸外U型凹槽 透過水接口——1.5英寸外牙槽（用于管連接） 取樣口——1/4英寸NPT堵頭 |
| 組件規格（含1根1英寸膜管） |
組件長度——72英寸 組件直徑——2.5英寸 兩端連接——1英寸螺口 透過水接口——1英寸螺口 取樣口——1/4英寸NPT堵頭 |
|
MATERIAL SPECIFICATIOMS |
|
| Substrate tube |
Polyvinyidene Fluoride High Density Polyethylene |
| Membrane |
Polyvinylidene Fluoride |
| Nominal Membrane Pore Size(μm) | 0.05,0.1,0.5 |
| Nominal Sinter Tube Pore Size(μm) | 20,100 |
|
Maximum Differential Pressure (PSI) |
60(1 inch tubes),120(1/2inch tubes) |
| Housing Materials | PVC,CPVC |
|
Housing Connections (42×1/2inch tube) |
Length -72 inches Diameter -8 inches End Connection -8inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug |
|
Housing Connections (10 or 13×1 inch tube) |
Length -72 inches Diameter -6 inches End Connections -6 inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug |
|
Housing Connections (4 or 5×1 inch tube) |
Length -72 inches Diameter -4 inches End Connections -4 inch OD Victaulic groove Permeate Ports -11/2 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug |
|
Housing Connections (1×1 inch tube) |
Length -72 inches Diameter -2.5 inches End Connections -1 inch threaded Permeate Ports -1 inch threaded Sample Port -1/4 inch NPT plug |
|
市場領域 |
具體應用 |
|
金屬電鍍 |
去除重金屬離子。經處理后離子濃度低于0.1ppm Heavy metal removal in metal finishing fluids, membrane filtrate less than 0.1ppm |
|
印刷電路板 |
去除重金屬離子。經處理后離子濃度低于0.1ppm Heavy metal removal in metal finishing fluids, membrane filtrate less than 0.1ppm |
|
0
半導體
|
經處理后砷化合物濃度低于0.1ppm Arsenic compounds of filtrate less than 0.1ppm 經處理后氟化合物濃度低于5ppm Fluoride compounds of filtrate less than 0.5ppm 減少硅的流失 Reduce the loss of silicon 去離子 Deionized 從鉛到錫的電鍍廢水中回收重金屬 Recycle heavy metal from electroplating wastewater of lead and tin. |
|
回灌地下水 |
去除重金屬離子。經處理后離子濃度低于0.1ppm Remove heavy materials, filtrate less than 0.1ppm |
|
電池制造 |
去除污水中的鉛與鎘 Lead and cadmium removal |
|
汽車制造 |
去除磷酸鹽處理工程中含有的鋅與磷酸鹽 Remove phosphate and zinc in the process of phosphate treatment. |
|
工業一般用途 |
去除焚燒清洗水中的重金屬物質 Incinerator, scrubber water treatment. 用于廢水回用中在反滲透前的預處理 RO pretreatment of wastewater recycling 在循環水中用于軟化水 Softener water in recycling water 整體的重金屬去除率達到0.1ppm Heavy metal removal, filtrate less than 0.1ppm 在沙濾工藝后代替澄清池 Replace the clarifiers after sand filters. |
|
MATERIAL SPECIFICATIOMS j |
|
| Substrate tube |
Polyvinyidene Fluoride High Density Polyethylene |
| Membrane | Polyvinylidene Fluoride |
| Nominal Membrane Pore Size(μm) | 0.05,0.1,0.5 |
| Nominal Sinter Tube Pore Size(μm) | 20,100 |
| Maximum Differential Pressure (PSI) | 60(1 inch tubes),120(1/2inch tubes) |
| Housing Materials | PVC,CPVC |
|
Housing Connections (42×1/2inch tube) |
Length -72 inches Diameter -8 inches End Connection -8inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug |
|
Housing Connections (10 or 13×1 inch tube) |
Length -72 inches Diameter -6 inches End Connections -6 inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug |
|
Housing Connections (4 or 5×1 inch tube) |
Length -72 inches Diameter -4 inches End Connections -4 inch OD Victaulic groove Permeate Ports -11/2 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug |
|
Housing Connections (1×1 inch tube) |
Length -72 inches Diameter -2.5 inches End Connections -1 inch threaded Permeate Ports -1 inch threaded Sample Port -1/4 inch NPT plug |
|
金屬污染物 |
經TMF系統處理后，排放可達標（毫克/升） |
|
銅（Cu） |
0.005 |
|
鎳（Ni） |
0.05 |
|
鉻（Cr） |
0.05 |
|
鉛（Pb） |
0.05 |
|
鎘（Cd） |
0.005 |
|
鋅（Zn） |
0.05 |
|
銀（Ag） |
0.01 |
|
鉬（Mo） |
0.1 |
|
砷（As） |
0.005 |
|
氰（Cn） |
0.01 |
|
金（Au） |
0.1 |
|
水銀（Hg） |
0.005 |
|
銠（Rh） |
0.1 |
|
錫（Sn） |
0.1 |
|
鈾（Pt） |
0.01 |
|
鎵（Ga） |
0.5 |
|
鍺（Ge） |
0.5 |
|
鐵（Fe） |
0.02 |
|
錳（Mn） |
0.02 |
|
以上都是實際數據。如果采用不同的化學藥劑和污水處理方式，這些數據可能會有差異。 |
|
